Brand: HW
Processing Service: Moulding
| Selling Units: | Piece/Pieces |
| Package Type: | CRATE |
The file is encrypted. Please fill in the following information to continue accessing it

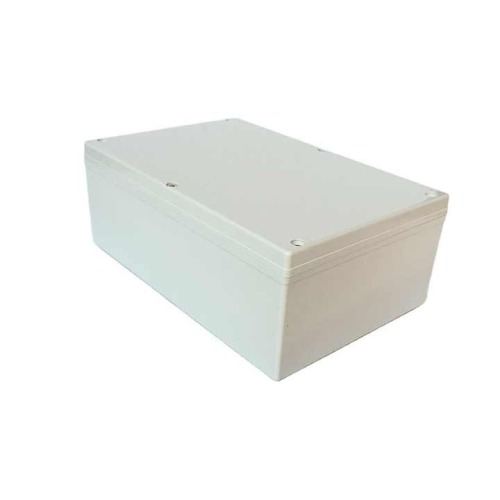

| Type | Plastic Waterproof Enclosure |
| Exterior Dim(L*W*H) | 300 * 230 * 50 mm |
| Weight | 794 g |
| Material | High impact ABS/PC, or ABS+PC with flame retardant, Can be changed as your requirement. |
| Operating Temperature | -20℃ to 90℃ |
| Protection Level | IP65 rating,With sealed interior space, humidity and dust cannot get inside. |
| Color | Grey or as requested. |
| modification | Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc. |
| Design&Mould | Your design is welcome. |

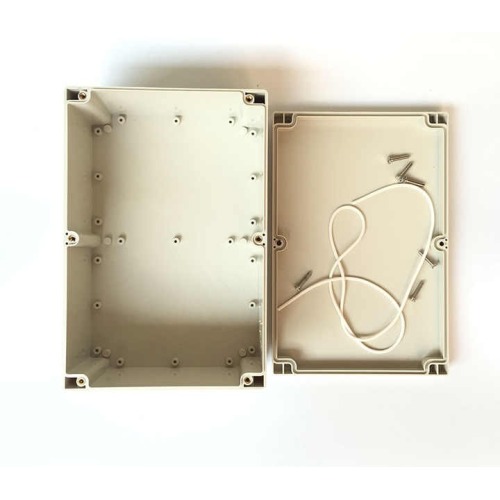

1:Appearance ABS pure new material, beautiful appearance design. The box has ribs to prevent the deformation of the box, enhance the waterproof, dustproof, insulation, and other properties of the box, and guarantee a longer service life. Our box is made of imported
2. Seal Ring: Made by Germany imported foaming machine, the seal ring is fixed on the box with good resilience. It's can make box 360° Sealing with strong waterproof and dust-proof performance.
3. Fix PoleIn the have same fix pole for DIN rail and mounting plate, and have two pole with copper nuts, which can facilitate the user to install PCB board, DIN rail and Mounting plate, it can be repeatedly disassembled to avoid the problem of self-tapping screws. (one box with 2pcs M4 screws).
Screw: Our box contains 4 pieces anti-drop screws. These screws are manufactured by using imported enhanced PC and thus exhibit high tensile strength, insulation, anti-corrosion, and are easy to install. Anti-drop screw solves the problem of losing screws during usage.

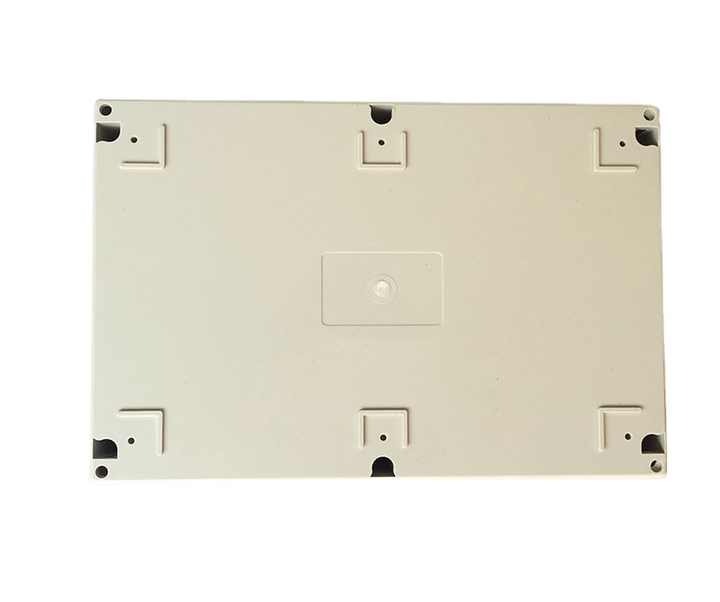

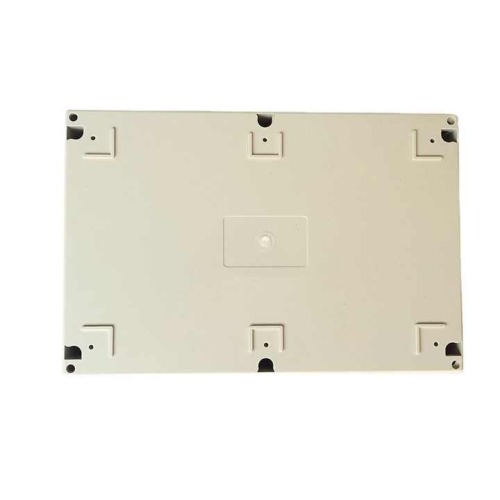

5. InstallationTwo installation methods:1.Install the wall with a selftapping screw through the fourcorner screw holes on the back of the housing.2.Back of the box have reservedmounting holes, which can bemounted on the wall withmounting angles.
Packaging: CRATE
Transportation: Ocean,Air
Place of Origin: CHINA
Supply Ability: 30000PCS
Port: QINGDAO
Payment Type: T/T
Incoterm: FOB,CFR,CIF,EXW
